CQ magnetic drive pumps



 product class:Magnetic pump series

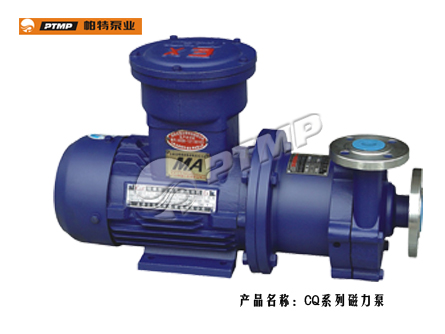

 product name:CQ magnetic drive pumps



Performance

 data

 Range of capacity      1.8~1450m³/h
Range of head  ≤133m
Medium temperature  -10℃~120℃
Ambient temperature   Up to 40℃
Maximum working pressure suction pressure+head of pump≤1.6MPa
Motor data

Supporting power



Voltage  380V
Frequency  50HZ
Rotating speed  2900r/min,1450r/min,970r/min
Protection class  IP44/IP54
Insulation class  B/F
Material pump body , pump cover,impeller  cast iron
Pump shaft  45 steel /stainless stell 3Crl3
Mechanical seal  silicon carbide,graphite,tungsten carbide,hard alloy and etc.

  • overview
  • feature
  • purpose
  • Model significance
  • Show case
  • data behavioral
  • Application area

  CQ type pump owns advantages such as simple structure, nice appearance, small body, little noise, reliable in operation, easy to operate and convenient to maintain. The magnetic drive part is mainly made of ferrite, and overflow part is made of stainless steel. Currently it is the no-leakage pump applied most widely

 It is applicable in pumping chemical media such as acid and alkali liquids, oil, rare and valuable liquids, poisonous liquids and volatile liquids etc. It is especially applicable in pumping flammable and explosive liquids

40CQ-20
40-Inlet diameter(mm)
CQ-Magnetic pumps
20-Head 20(m)
